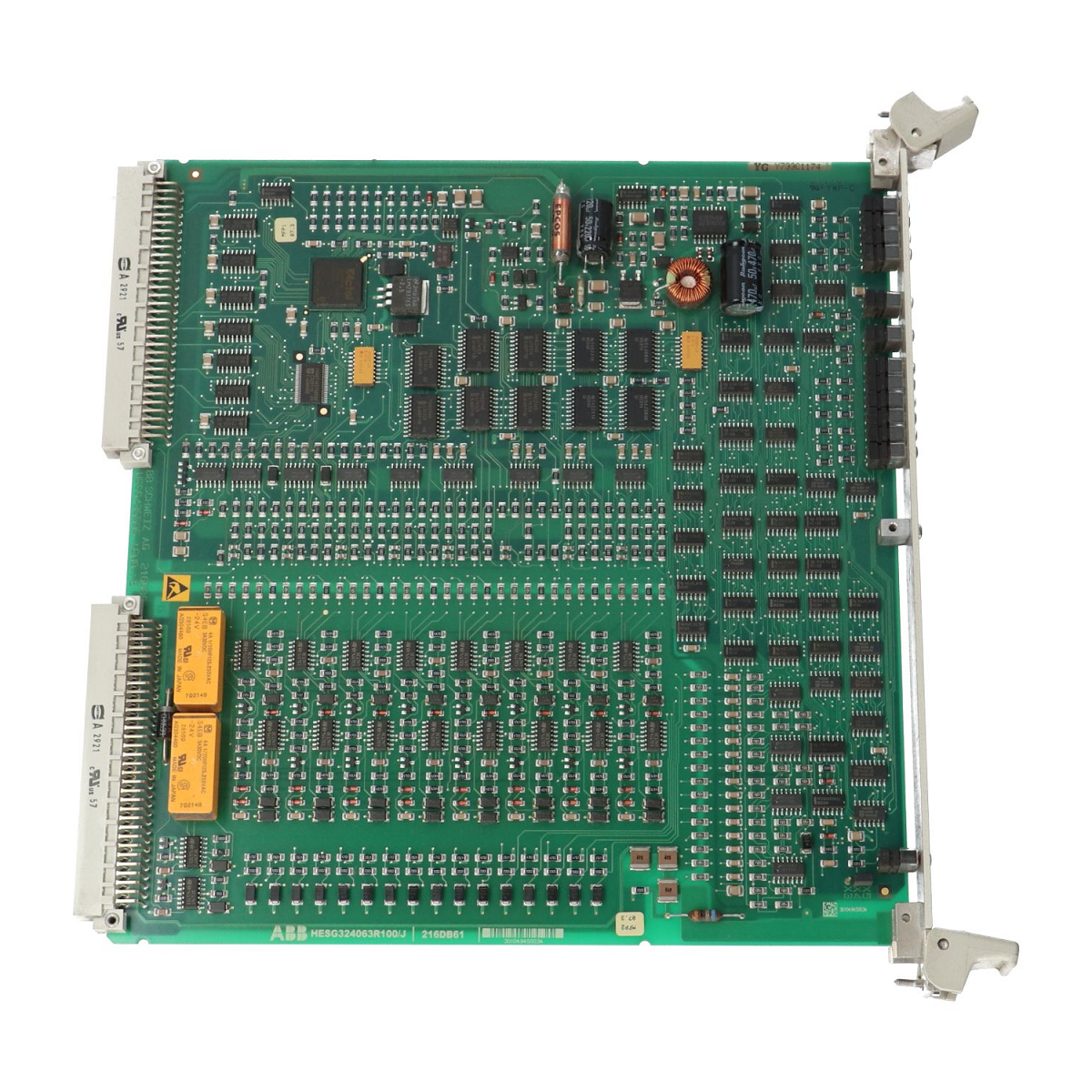

ABB 216DB61 HESG334063R100 Binary I/P And Tripping Unit Board

Brand Name : ABB

Model Number : 216DB61

Certification : CQ,COO

Place of Origin : Sweden

MOQ : 1pc

Price : $3000

Payment Terms : T/T

Supply Ability : 9999pc

Delivery Time : 5-7days

Packaging Details : New and original factory, individual box packing

Name : 216DB61

Product ID : HESG334063R100

Catalog Description : 216DB61 HESG334063R100 Binary I/P and tripping unit Board

Product Net Depth / Length : 136 mm

Product Net Height : 60mm

Product Net Width : 85mm

Product Net Weight : 0.8kg

Quality : 100% Brand New

Warranty : 1 year

Contact Now

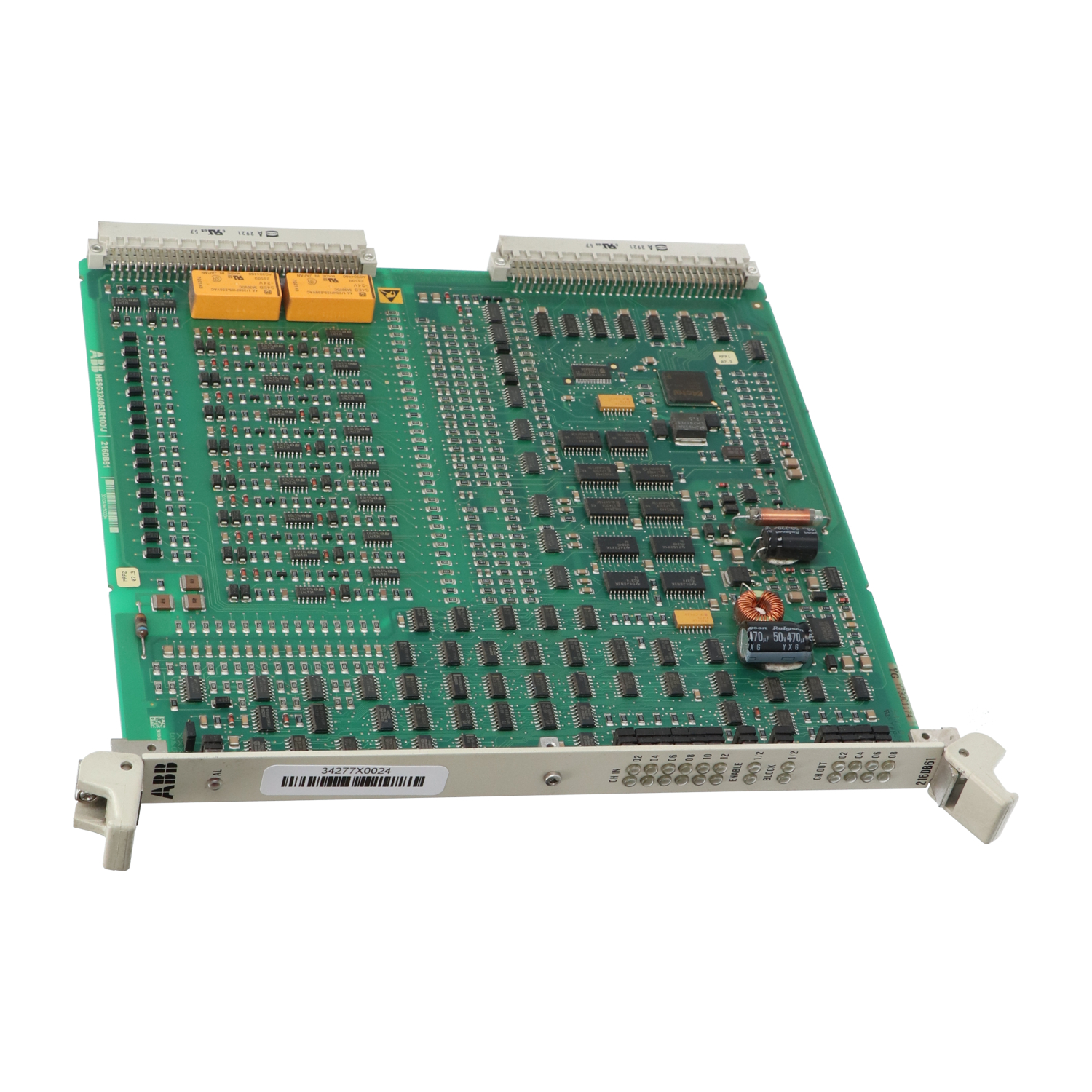

ABB 216DB61 HESG334063R100 Binary I/P And Tripping Unit Board

REG216.pdf

Product Details:

Brand name	ABB
Model	216DB61
Product ID	HESG334063R100
Condition	NEW
Gross weight	1.5kg
Packing size	201510cm
Payment Term	T/T
Warranty	1 year
Courier Partner	DHL, UPS, TNT, FedEx and EMS

The binary I/P and tripping unit comprises 16 I/P and 8 O/P channels.

The O/P channels are used to transfer the tripping commands of activated protection functions to the 216GA62 tripping relay module.

The I/P channels are used for external signals from the 216GE61 I/P relay module, which it transfers to the 216VC62a processing unit via the bus.

connector "a" (upper) : I/P channels CHI01...CHI16
connector "b" (lower) : channels CHO01...CHO08.

The position of the plug-in jumper BR1 on the PCB of 216DB61 determines whether the "ENABLE" and "BLOCK CH OUT" functions are operational or not, i.e.

ABB 216DB61 HESG334063R100 Binary I/P And Tripping Unit Board
